SULFET | SCREEN PRINTING MACHINES

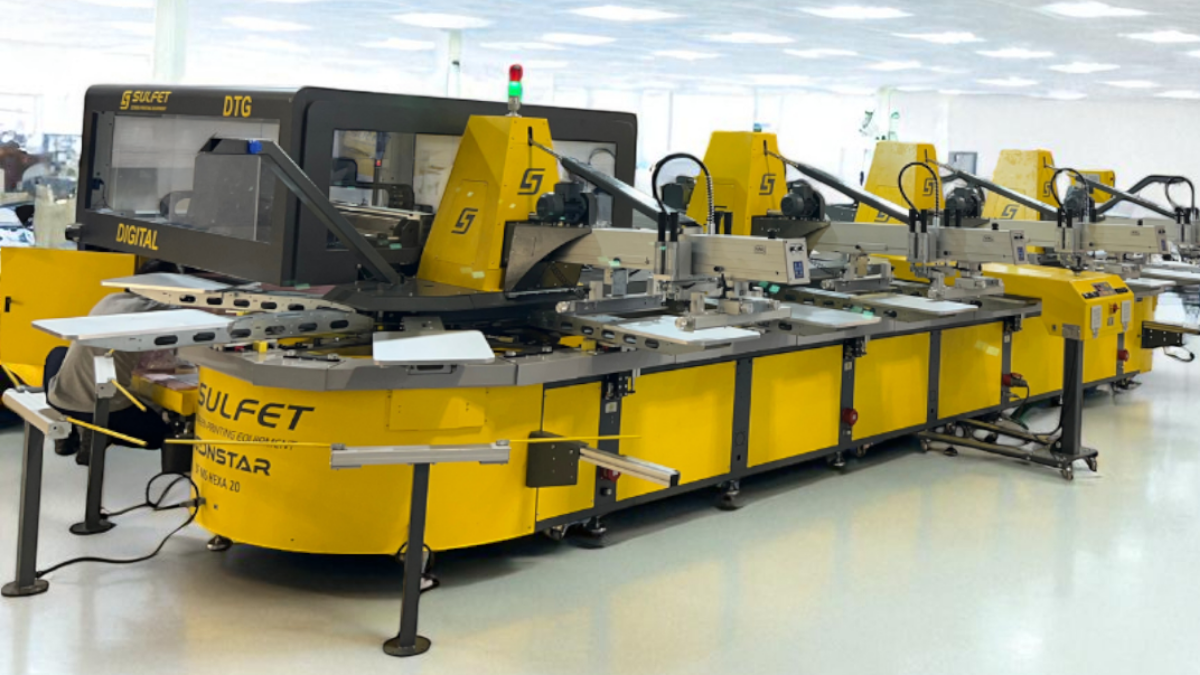

DIGITAL PRINTING MACHINE

 8 - 30 color options
lightweight aluminum alloy printing pallets
AC servo motor rotation system (patented)
printhead removal system for mold cleaning
squeegees with electric movement with AC inverter
12'' touch control panel
User friendly interface
micro registration screen system width vernier scale
individual controls for managing print and flood speed
indipendent control panel on all print heads
height sqeegee of angle and pressure adjusment system
easy pallet locked system
low energy consumption
SULFET MOONSTAR MS HEXA & PENTA 20 MS HEXA & PENTA 24 MS HEXA & PENTA 28 MS HEXA & PENTA 32 MS HEXA & PENTA 36 MS HEXA & PENTA 40 MS HEXA & PENTA 44 MS HEXA & PENTA 48 MS HEXA & PENTA 52 MS HEXA & PENTA 56 MS HEXA & PENTA 60 MS HEXA & PENTA 64
pallets number 20 24 28 32 36 40 44 48 52 56 60 64
color number ( maximum ) 8 10 12 14 16 18 20 22 24 26 28 30
flash cure ( optional ) 6 8 10 12 14 16 18 20 22 24 26 28
maximum print size  ( mm/inch ) HEXA: 500 x 700 / 20'' x 28''      I      600 x 800 / 24'' x 32''      I       700 x 1000 / 28'' x 40''      //      PENTA: 600 x 800 / 24'' x 32''      I       700 x 1000 / 28'' x 40''     I     800 x 1200 / 32'' x 48''
print size ( cm )
maximum screen size ( mm/inch )		 50 x 70 / 650 x 1000 / 26'' x 40''      I      600 x 800 / 750 x 1100 / 30'' x 44''      I       700 x 1000 / 850 x 1300 / 34'' x 51''     I     800 x 1200 / 950 x 1500 / 38'' x 59''
print size ( cm )
maximum pallet size  ( mm/inch )		 50 x 70 / 550 x 900 / 22'' x 36''      I      60 x 80 / 650 x 1000 / 26'' x 40''      I      70 x 100 / 750 x 1200 / 30'' x 48''     I     80 x 120 / 850 x 1400 / 34'' x 55''
maximum frame profille (mm/inch) 40 x 40 / 1.6'' x 1.6''
index precision ( mm/inch ) ± 0,01
maximum production ( pieces/h ) 1200
air consumption ( l./min. 7 bar ) 43,5 lt./dk. - 1,55 cfm - her baskı kafasının adedi
maximum electrical consump. ( kVA/h )* 6 7 8 9 11 11 11 11 11 11
HEXA total lenght ( mm / feet ) 10000 11500 13000 15000 16500 18500 20000 21500 23500 25000 26700 28500
overall width ( mm / feet ) 50 x 70 & 60 x 80 / 3900 / 12'      I      70 x 100 / 4300 / 14'
space between pallets
in linear area ( mm / inç )		 50 x 70 / 300 / 12''      I      60 x 80 / 200 / 8''      I      70 x 100 / 100 / 4''
Overall height ( mm / feet ) 1800 / 5'
PENTA total lenght ( mm / feet ) 11500 13500 15500 17500 19500 21500 23500 26000 28000 30000 32000 34000
overall width ( mm / feet ) 60 x 80 / 3900 / 12'      I      70 x 100 / 4300 / 14'      I      80 x 120 / 4800 / 15'
Space Between Pallets
In Linear Area ( mm / feet )		 60 x 80 / 375 / 15''     I     70 x 100 / 275 / 11''     I     80 x 120 / 175 / 7''
Overall height ( mm / feet ) 1800 / 5'
*these values don't inclued the energy consumption of flash cures. For total energy  flashcures consumption should be added.
